PL1/K1 EB Portable Hearing Loop Election Bundle


£2,990.00 exl VAT

The PL1/K1 Portable Hearing Loop Election Bundle has been created with Polling Stations in mind.  It will ensure that Councils are adhering to  the recommendations issued regarding Hearing Loops being made available for all constituents when voting.

The aim being to ensure a provision is made for those who are hard of hearing and to ensure compliance with the guidelines laid out in the Equality Act 2010.

The PL1/K1 Election Bundle includes 20 x PL1/K1 Portable Hearing Loops , 1 x RXTI2 Loop Listener and 5 x Tie Clip Microphones.  Additional items can be purchased if required.  Should you require a different quantity or an official Quotation, please contact the office at info@hearingloop.co.uk.

Description

The PL1/K1 Portable Hearing Loop Election Bundle has been created with Polling Stations in mind.  It will ensure that Councils are adhering to  the recommendations issued regarding Hearing Loops being made available for all constituents when voting.

The aim being to ensure a provision is made for those who are hard of hearing and to ensure compliance with the guidelines laid out in the Equality Act 2010.

The PL1/K1 Election Bundle includes 20 x PL1/K1 Portable Hearing Loops , 1 x RXTI2 Loop Listener and 5 x Tie Clip Microphones.  Additional items can be purchased if required.

Should you require a different quantity or an official Quotation, please contact the office at info@hearingloop.co.uk.



PL1/K1 Portable Hearing Loop & Accessories Overview

The PL1/K1 Portable Hearing Loop is quick to set up in seconds and easy to use with its simple one button operation, making it a preferred hearing loop choice for this application.

With a loop listening field of 1.2m, it is ideal for restricted person to person contact such as when talking at a desk, while its limited horizontal throw of loop field helps maintain privacy when needed.

It is a desktop unit that clearly shows the “hearing loop” sign, allowing people with hearing difficulties to know that this service is present and available without the need to ask.

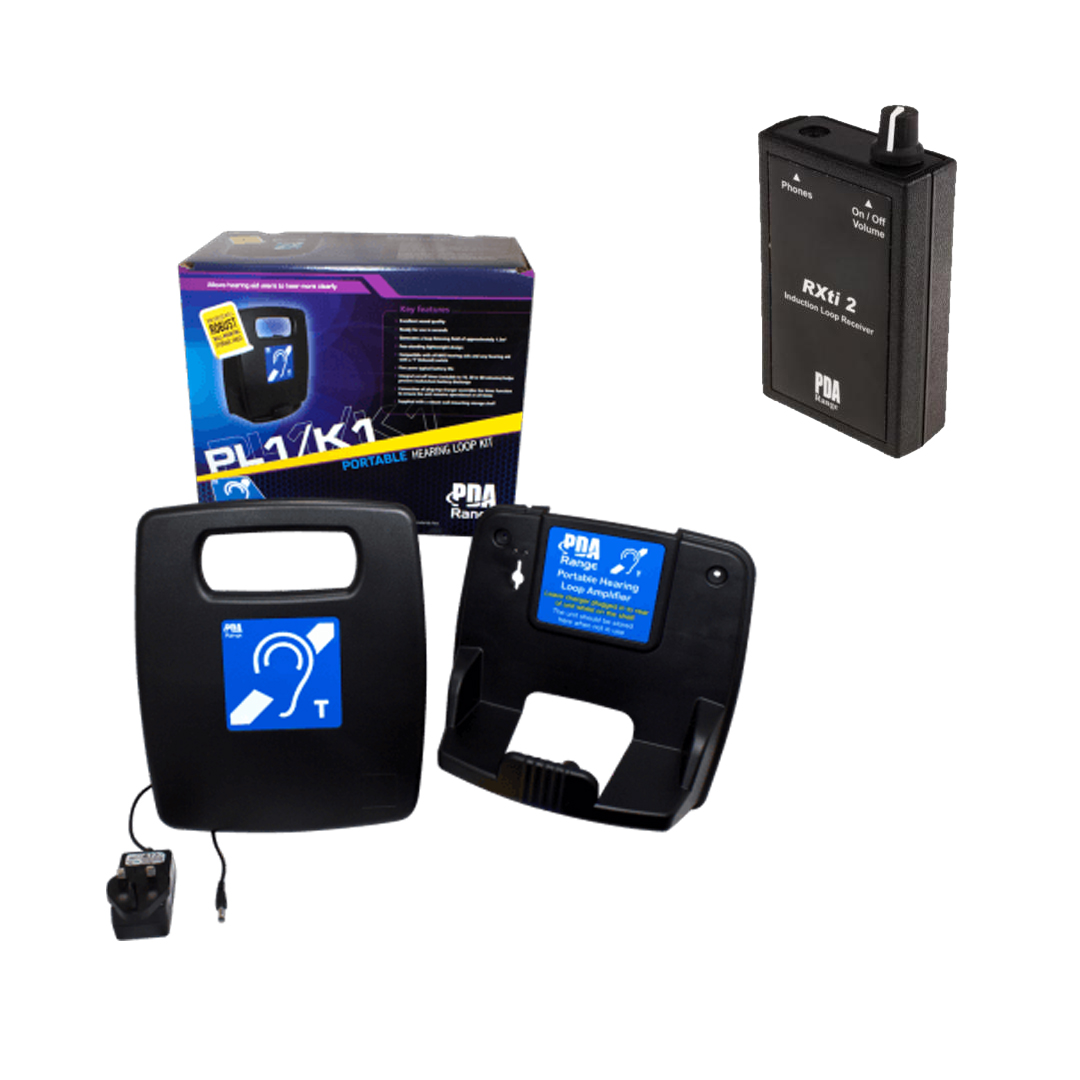

The bundle not only includes a number of PL1/K1 Portable Hearing Loops, but also a Loop Listener and Clip-on Microphones.

The loop listener will allow a non hearing aid user to test the units are working as they should prior to dispatching them out to the Polling Stations.  The clip-on mics offer greater speech clarity in an environment with excessive echo due to poor acoustic levels, as can be found in some venues.



How will this benefit my Constituents?

Hearing loss can effect people in different ways, making any outing, including voting, a daunting experience for many.  Reduced access to services and difficulties communicating with others can cause social withdrawal which will directly affect their inclination to visit a Polling Station.  Hearing loss can also trigger emotional difficulties caused by a drop in self-esteem.  Ensuring you have a Hearing Loop facility available gives those members of the public total inclusivity and confidence when it comes to voting and attending Polling Stations.  Knowing that they can converse and ask questions with ease will provide a positive experience, something that everyone should be entitled to.



Why do I need a Hearing Loop in a Quiet Environment?

Many people aren’t aware that the microphone on a hearing aid is usually situated at the back of the ear, picking up sound from behind as opposed to in front.  This can make day-to-day conversations extremely difficult and frustrating for hearing aid users, even in the quietest of environments.  In addition, where there is even the slightest echo due to poor acoustic levels, picking up the clarity of the person speaking can be very demanding.



How does the Hearing Loop work?

The PL1/K1 works firstly by picking up the sound using the inbuilt microphone, amplifying the sound, and then transmitting this using an electromagnetic signal to the users hearing aids.  The hearing aid then converts this signal back into a sound suited to its users specific hearing requirements.  This then enables the user to participate more fully in general conversation, ordering goods or services, etc.  A hearing loop is accessible to any hearing aid with the T-Setting or “MT” switch available.



Compare the full PL1 range here:

PL1/K1 Portable Induction Loop

Wall Mounted Shelf

Robust Plastic Carry Case

RXT12 Loop Listener

Tie-Clip Microphone

Portable Hearing Loop & Shelf

Portable Hearing Loop & Carry Case

Portable Hearing Loop Self Service Bundle

Portable Hearing Loop & Carry Case Self Service Bundle

Portable Hearing Loop Election Bundle

PL1/K1 Portable Induction Loop

Wall Mounted Shelf

Robust Plastic Carry Case

RXT12 Loop Listener

Tie-Clip Microphone

Key Features

PL1/K1 Portable Hearing Loop

  • Supplied with a robust wall-mounting storage shelf.
  • Portable, lightweight design meaning the system can move easily from location to location.
  • Simple one button operation.
  • Integral high performance microphone.
  • Excellent sound quality.
  • Five years’ expected battery life under normal operating/charging conditions.
  • Auto shut-off facility (user selectable for 10, 30 or 60 minutes) helps preserve battery life.
  • Connection of the plug-top charger overrides the timer function to ensure the unit remains operational at all times.
  • Can be in use as normal whilst charging.
  • CQC Compliant.



RXTI2 Induction Loop Listener

  • Designed to operate with standard headphones or earphones (32R or less)
  • Volume control
  • 3.5mm jack socket
  • Frequency response 100Hz to 13KHz
  • Requires 2x AAA batteries (not supplied)

System Includes

20 x PL1 amplifier

20 x plug-top charger

20 x wall mounting storage shelf

1 x RXTI2 Induction Loop Listener

5 x AMT Tie Clip Microphone

Technical Specification

PL1/K1 Portable Hearing Loop

  • Application/operation: Portable
  • Coverage: 1.2m2 approx.
  • Mains supply: Kit includes a 230V a.c. plugtop charger.
  • Max battery size and type: Amplifier includes an Integral 12V Valve Regulated Sealed Lead Acid battery.
  • Auxiliary inputs: 2 x Mic (one built-in mic and one 3.5mm remote mic socket for AMT or AMD microphones).
  • Indicators: Power on; input level; charging required; charging in progress; audio-warning of imminent shutdown.
  • Controls: On/off button; adjust auto-shut off timer (note: the auto-shut-off function only applies when the plugtop charger is not connected to preserve battery life).
  • Product dimensions: (mm) W 271 x H 200 x D 77mm (amplifier).
  • Shelf measures: W 260 x H 263 x D 140mm.
  • Construction & finish: Black plastic amplifier with blue ‘AFILS’ available label; black high impact polystyrene shelf.
  • IP Rating: IP20.
  • Weight: 2.82kg (amplifier); 360g (shelf).

Documentation

PL1_K1_Datasheet

PL1_Instruction Manual

RXTI2 Instruction Manual

FAQ

Why do I need an RXTI2 Loop Listener?

It is good practice to ensure that your hearing loop is functioning as it should at all times.  The RXTI2 Loop listener allows the non-hard of hearing to test the system is working as it should.  When you plug a set of headphones into the loop listener (not supplied), you can hear exactly what someone with hearing aids would hear.  This allows you to trouble shoot any problems before they become an issue for someone who needs access to the hearing loop.
