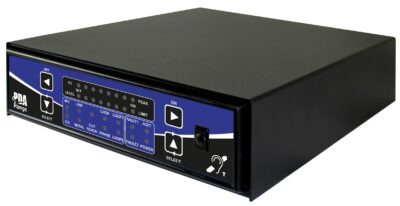

PDA11/SD free standing hearing loop amplifier front and side view

PDA11/SD Hearing Loop Amplifier – 1000m2 Free Standing

£376.00 exl VAT

A new free-standing 11A hearing loop amplifier ideal for use in areas up to 1000m2. With intuitive LED interface allowing simple set-up of input levels, output current, phantom power & metal compensation. Its superior audio processing and powerful CPU provide life-like speech and first class music reproduction.

  • A new free-standing 11A hearing loop amplifier for use in areas up to 1000m2.
  • Ideal for larger areas such as churches, halls or theatres.
  • Intuitive LED interface allows simple set-up of input levels, output current, phantom power & metal compensation.
  • 1 XLR mic input, 1 XLR line input and 1 outreach connector.
  • Class D output stage for maximum efficiency.
  • Superior audio processing and powerful CPU provide life-like speech and first class music reproduction.
  • Fault relay & LED indicators provide clear indication of operation and fault status.
  • Industry leading dual action automatic gain control compensates for poor microphone technique.
  • Line level output for recording or daisy-chaining multiple units to cover larger areas.
  • Complies with EN62368-1 (Safety requirements for audio/video, information and communication technology equipment).
  • Designed and manufactured in the UK
  • 5 year standard warranty
SKU: PDA11/SD Categories: ,

Description

The PDA11/SD Hearing Loop Amplifier is a free standing constant current amplifier offering high quality speech and music reproduction.  An LED interface along with four membrane control buttons aids navigation and easy setup.  This also gives clear indication of operation and fault status.

Covering an area up to 1000m2 the PDA11/SD Hearing Loop Amplifier is an ideal solution for larger areas such as churches, halls or theatres.  For lesser area coverage please see the PDA5/SD (200m2) or the PDA7/SD (500m2).



Key Features

  • A new free-standing 11A hearing loop amplifier for use in areas up to 1000m2.
  • Ideal for larger areas such as churches, halls or theatres.
  • Intuitive LED interface allows simple set-up of input levels, output current, phantom power & metal compensation.
  • 1 XLR mic input, 1 XLR line input and 1 outreach connector.
  • Class D output stage for maximum efficiency.
  • Superior audio processing and powerful CPU provide life-like speech and first class music reproduction.
  • Fault relay & LED indicators provide clear indication of operation and fault status.
  • Industry leading dual action automatic gain control compensates for poor microphone technique.
  • Line level output for recording or daisy-chaining multiple units to cover larger areas.
  • Complies with EN62368-1 (Safety requirements for audio/video, information and communication technology equipment).
  • Designed and manufactured in the UK
  • 5 year standard warranty

Technical Specification

Type Free-standing. Plugtop IEC mains lead supplied.
Coverage 1000m2 approximately
Mains supply Plugtop IEC mains lead supplied.
Output 11A loop drive current @ 1 Ohm; Loop output volage 14V.
Max battery size and type n/a.
Auxiliary inputs 1 x XLR mic input with switchable 12V phantom power, 1 x XLR line input and 1 x Outreach connector.
Indicators LED display with level, peak and limit indicators, Mic, 12V, Line, Metal, Outreach, Lock, Loop, Fault, Hot and Power Indicators.
Controls Line Input, Microphone, 12V Phantom, Outreach, Metal Comp, Loop Drive.
Connections Mic (3-pin XLR); Line In (3-pin XLR); Loop (2 way binding post); Outreach (4-way pluggable connector); Line Out (3-way pluggable connector); Fault Relay (3-way pluggable connector).
Product dimensions (mm) 67 (H) x 218 (W) x 280 (D) mm.
Construction & finish Mild steel zintec, 1mm thick, black powder coated.
IP Rating IP40.
Weight 2.38kg
Operating conditions/temperature -5ºC to +40ºC. Max relative humidity: 95%.



Documentation

CTEC_-_PDA11_SD_Datasheet_2022-01-11

PDA Loop Amplifier Range Instructions
