Description

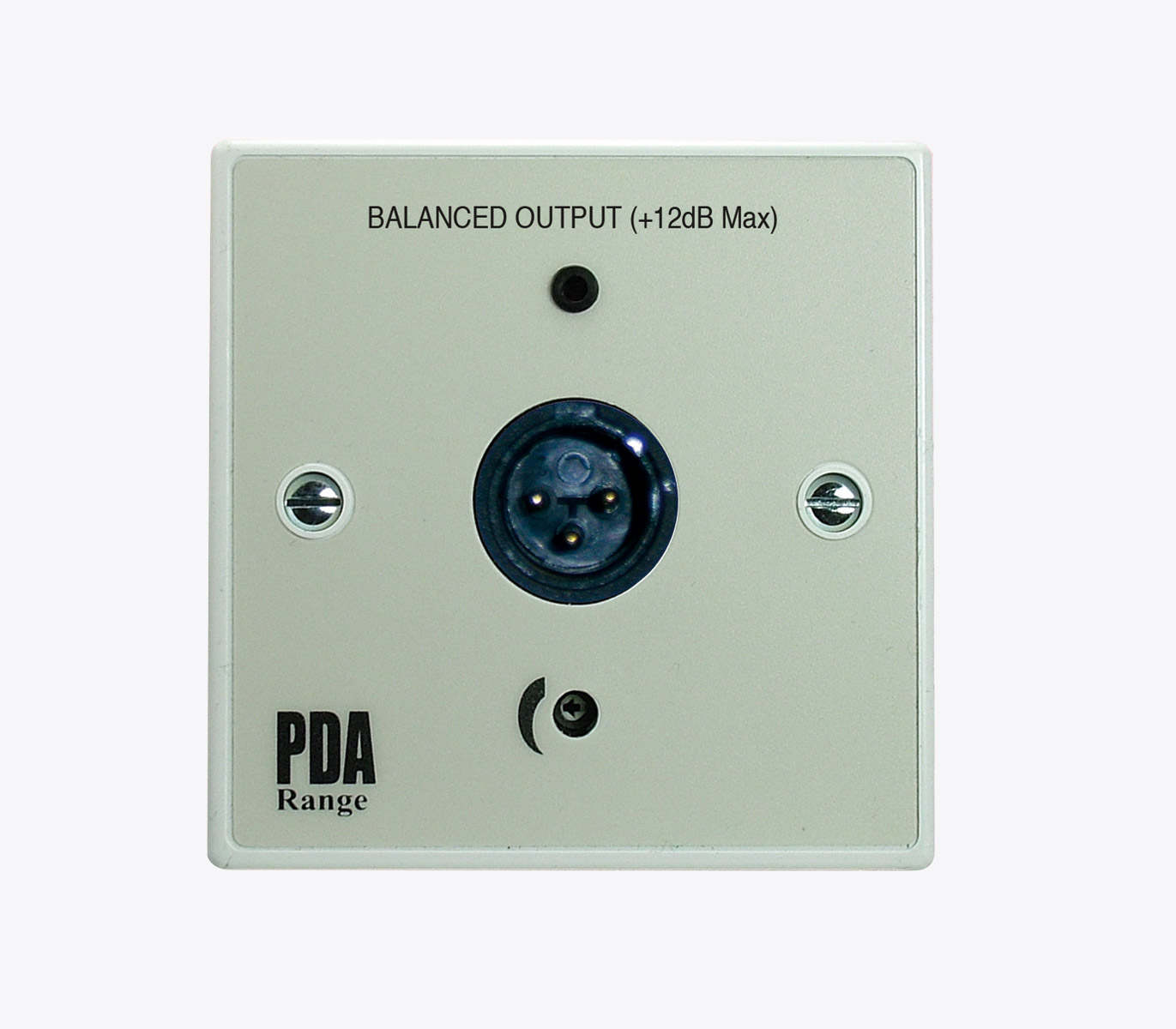

The APXO 3 Pin XLR Balanced Line Output Plate connects an outreach chain to third-party audio equipment such as a conventional amplifier. It Provides an adjustable balanced line output (+12B max.) on a standard 3 pin male XLR connector.

Technical Specification

Maximum XLR output signal level: +12dBu, balanced.

Noise: -95dB.

Output level control: 8to +12dB.

Distortion: Better than 0.01%THD + noise.

More Information

The Outreach Plate audio input extension system comprises a range of wall, ceiling and desk mountable plates specifically designed to increase the audio input capability of any audio system. Covering the most common variants of audio connectors, they work by mixing the signals from various audio input sources into a single balanced line level input on a compatible amplifier.

Each input plate features a built-in mixer, preamp, input level control and balanced output.

Typically, up to 10 Outreach plates (any mix) can be daisy-chained to one balanced line level connection.  Cable lengths up to 100m are easily achievable using standard two-pair audio cable (i.e. Belden 8723).

Each plate requires four wires; two balanced line (Line/A +, Line/A –), one ground (GND) and one power connection (V+ = 12-32V d.c.).

Most of C-TEC’s PDA Range induction loop amplifiers are fitted with an Outreach connection socket as standard. For audio systems that do not have an Outreach socket, you can achieve straightforward network connection by using an ‘APV’ 24V 250mA d.c. regulated power supply and an ‘APXO’ 3 pin XLR balanced line output plate.
