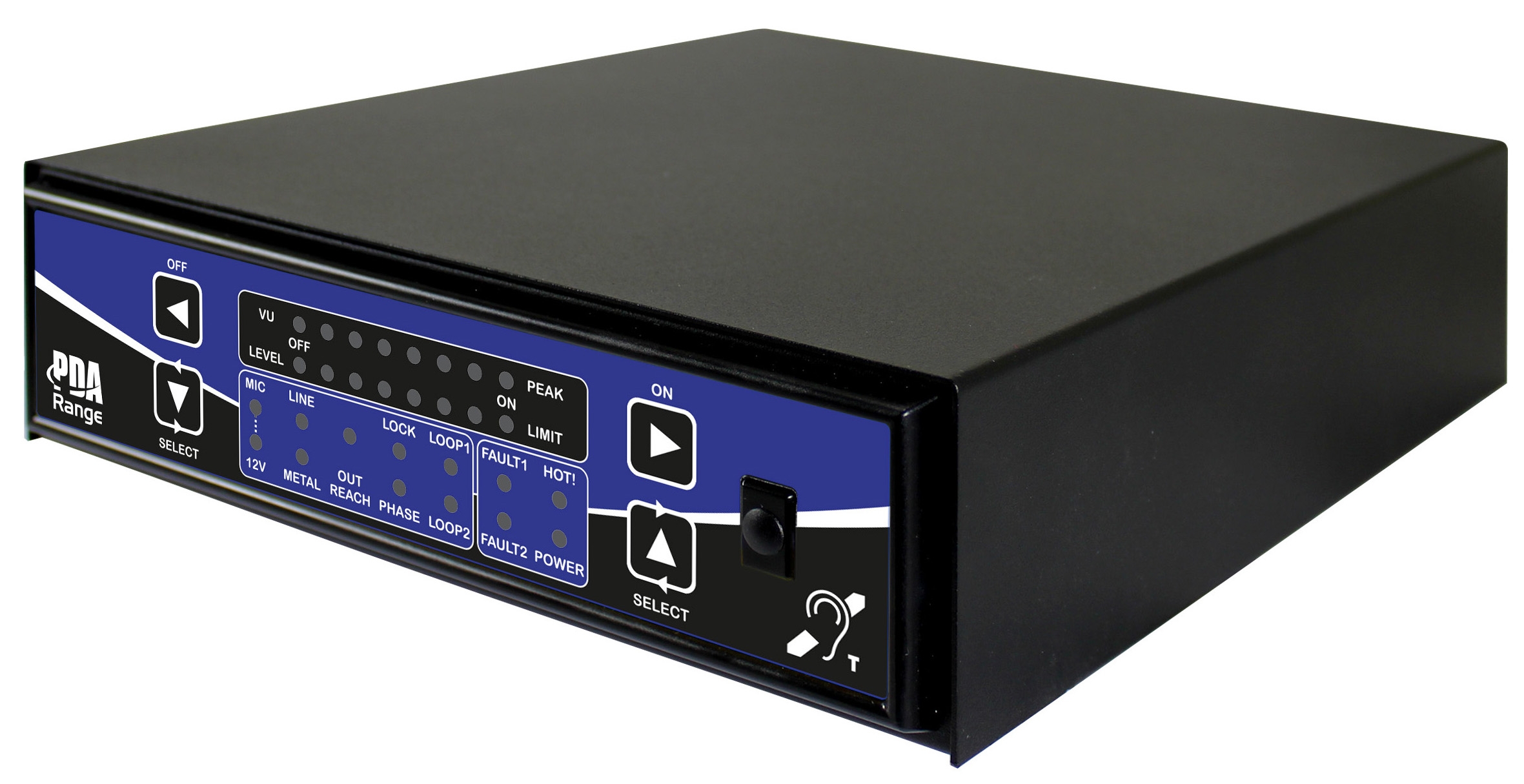

PDA7/DD Hearing Loop Amplifier – 500m2 Free Standing Phase-Array

£607.00 exl VAT

A new free-standing, phase shifting, 2 x 5A hearing loop amplifier ideal for use in areas up to 500m2. With intuitive LED interface allowing simple set-up of input levels, output current, phantom power & metal compensation. Its superior audio processing and powerful CPU provide life-like speech and first class music reproduction.

  • A new free-standing 2 x 5A phase-array hearing loop amplifier for use in areas up to 500m2.
  • Ideal for medium areas such as churches or larger meeting rooms, offices and classrooms
  • Intuitive LED interface allows simple set-up of input levels, output current, phantom power and metal compensation.
  • 1 XLR mic input, 1 XLR line input and 1 outreach connector.
  • Anti-tamper lock function.
  • Class D output stage for maximum efficiency.
  • Superior audio processing and powerful CPU provide life-like speech and first class music reproduction.
  • Fault relay & LED indicators provide clear indication of operation and fault status.
  • Industry leading dual action automatic gain control compensates for poor microphone technique.
  • Line level output for recording or daisy-chaining multiple units to cover larger areas.
  • Designed and manufactured in the UK
  • 5 year standard warranty



In stock

SKU: PDA7/DD Category:

Description

The PDA7/DD Hearing Loop Amplifier is a constant current amplifier featuring phase-shifting technology to give consistent coverage with low chance of dead spots, and minimal overspill. An LED interface along with four membrane control buttons aids navigation and easy setup, whilst also giving clear indication of operation and fault status.

Covering an area up to 500m2 the PDA7/DD is an ideal solution for medium sized areas such as churches or larger meeting rooms, offices and classrooms.  For other area coverage please see the PDA5/DD (200m2) or the PDA11/DD (1000m2).



Key Features

  • A new free-standing 2 x 5A phase-array hearing loop amplifier for use in areas up to 500m2.
  • Ideal for medium areas such as churches or larger meeting rooms, offices and classrooms
  • Intuitive LED interface allows simple set-up of input levels, output current, phantom power and metal compensation.
  • 1 XLR mic input, 1 XLR line input and 1 outreach connector.
  • Anti-tamper lock function.
  • Class D output stage for maximum efficiency.
  • Superior audio processing and powerful CPU provide life-like speech and first class music reproduction.
  • Fault relay & LED indicators provide clear indication of operation and fault status.
  • Industry leading dual action automatic gain control compensates for poor microphone technique.
  • Line level output for recording or daisy-chaining multiple units to cover larger areas.
  • Designed and manufactured in the UK
  • 5 year standard warranty

Technical Specification

Type Free-standing. Plugtop IEC mains lead supplied.
Coverage 500m2 approx.
Mains supply Plugtop IEC mains lead supplied.
Output 2 x 5A loop drive current @ 1 Ohm; Loop output volage 14V.
Max battery size and type n/a.
Auxiliary inputs 1 x XLR mic input with switchable 12V phantom power, 1 x XLR line input, 1 x Outreach connector and 1 x Optical TOS Link connector.
Indicators VU Meter (shows the amplitude of the audio); HOT! (lit if the output stage is getting hot); FAULT1 / FAULT2 (lit if loop 1 or loop 2 has shut down because of overheating or excessive current; POWER (lit when the amplifier is receiving power).
Controls Line Input, Microphone, 12V Phantom, Outreach, Metal Comp, Loop Drive 1, Loop Drive 2, Phase Shift.
Connections Mic (3-pin XLR); Line In (3-pin XLR); Loop (4 way binding post); Outreach (4-way pluggable connector); Line Out (3-way pluggable connector); Fault Relay (3-way pluggable connector); Optical; 230Va.c. Mains.
Product dimensions (mm) 67 (H) x 218 (W) x 280 (D) mm.
Construction & finish Mild steel zintec, 1mm thick, black powder coated
IP Rating IP40.
Weight 2.38kg
Operating conditions/temperature -5ºC to +40ºC. Max relative humidity: 95%.

Documentation

PDA7_DD_Datasheet_2022-01-11
